Jcally x Crinacle AP6 Portable DAC-Amplifier

The JCALLY × Crinacle AP6 represents a new benchmark in portable audio performance, designed in collaboration with renowned audio reviewer and measurement specialist Crinacle.

Developed to deliver exceptional power and precision in a compact form factor, the AP6 stands as JCALLY’s most powerful DAC-amplifier to date. With up to 540mW of balanced output power (16Ω load), it confidently drives demanding headphones whilst maintaining superb detail, clarity, and control.

The AP6 introduces a dual-output Conexant CX31993 DAC architecture, the first of its kind in this category, enabling simultaneous 3.5mm single-ended and 4.4mm balanced outputs with remarkable efficiency. Complemented by dual SG Micro SGM8262 op-amps, the AP6 achieves both high current output and low distortion for a refined, transparent sound signature.

Encased in a sleek, anodized aluminum body, the AP6 combines minimalist industrial design with robust durability, offering premium build quality and portability for everyday audiophile use.

At under US$40, the AP6 redefines what’s possible in entry-level hi-fi—offering a reference-grade sound signature crafted and tuned in partnership with Crinacle.

Core Features

• Dual Output Conexant CX31993 DAC: Flexibility in either single-end or balanced digital-to-analog conversion out of a single CX31993 chip, improving separation, resolution, and noise performance.


• Dual SG Micro SGM8262 Operational Amplifiers: High-output opamps provide clean, dynamic amplification capable of powering full-size headphones with ease.


• Sleek Aluminum Housing: Lightweight yet solid construction ensures both aesthetic appeal and practical heat dissipation during extended listening sessions.


• Class-Leading Power in Its Price Range: Up to 540mW @ 16Ω balanced output, outperforming many devices at multiple times its cost and size.

What You Get

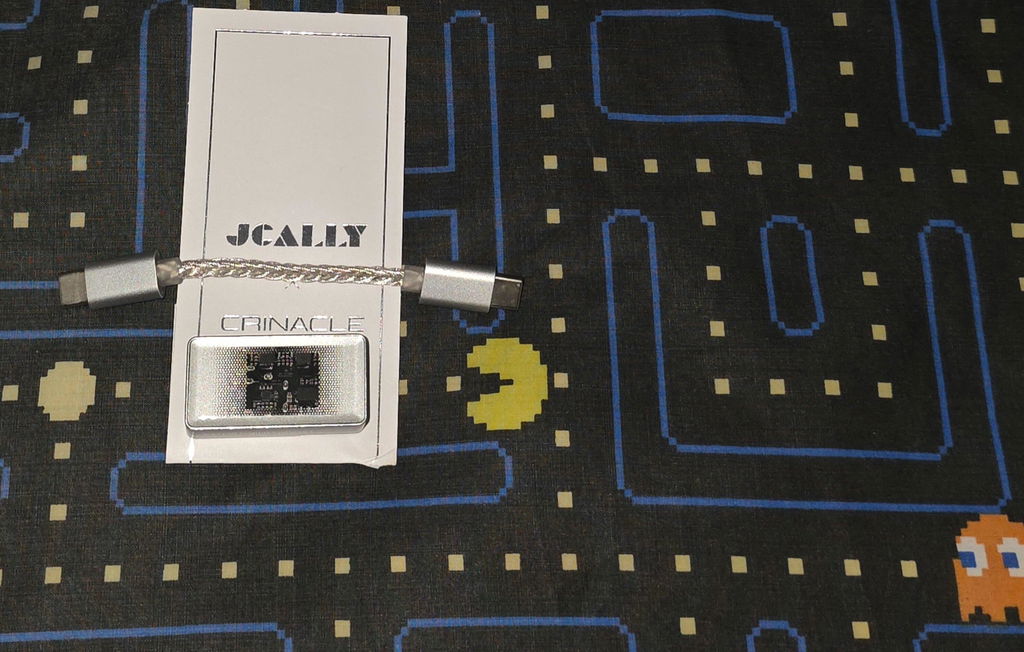

• JCALLY × Crinacle AP6
• USB C-to-C cable
• USB C-to-A adapter


Specs

• DAC Chip: Conexant CX31993

• Amp Chip: Dual SG Micro SGM8262

• Maximum Power Output (BAL):
  - @ 16Ω: 540mW
  - @ 32Ω: 440mW
  - @ 300Ω: 51mW

• Maximum Power Output (SE):
  - @ 16Ω: 220mW
  - @ 32Ω: 115mW
  - @ 300Ω: 12.9mW

• SNR @1kHz 0dBFS: 116dB (BAL), 118dB (SE)

• DNR: 98dB (BAL), 96dB (SE)
• THD+N @1kHz 0dBFS: 0.003% (BAL), 0.003% (SE)

• Crosstalk @1kHz -6dBFS: −114dB (BAL), −72dB (SE)

• Output Impedance: <1.0Ω (BAL), <0.6Ω (SE)
